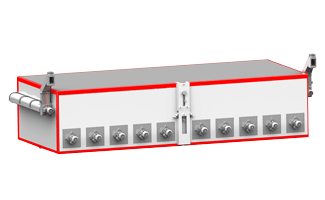

The GVA Heatsetting machine offers proven reliability, flexibility, and productivity in continuous heatsetting. It utilizes superheated steam with the full capacity of heatsetting natural or synthetic fibers.
The 6 channel configuration provides unmatched versatility for the customer. The GVA essentially provides six machines in one energy efficient package. Not only is the GVA a perfect solution for running high volumes of uniform production efficiently, but the GVA also provides the flexibility to run six individual lot sizes while offering the ability to process frieze or straight yarn on any position.
Our new modular system of GVAs gives our customers the possibility to choose the machine that meets their individual demands:
|GVA 4.0+||GVA 5.0+||GVA 8.0+|
|Number of operators||2||2||2|
|Maximum ends on creel||96||96||96|
|Maximum yarn speed overfeed||600||600||600|
|Straight and frieze yarn possible|
|Maximum production (tons/day)||8||12||17|
|Channels with yarn relaxing zone||6||6||6|
|Accumulator for optimizing machine efficiency|
|Take up winder maximum yarn speed (m/min)||750 m/min||750 m/min||750 m/min|
|Maximum belt density (g/m length of belt)||185||185||185|
|Steam consumption (kg/h)||75||80||90|
|Electricity consumption (KWh)||50 - 70||60 - 80||80 - 90|
All data without guarantee and excluding all liability. These are approximate values which can vary depending on conditions. Production data depending on dtex, twist, filaments, yarn quality, yarn speed, belt density, etc. The belts must not be loaded with more than the recommended quantity.
