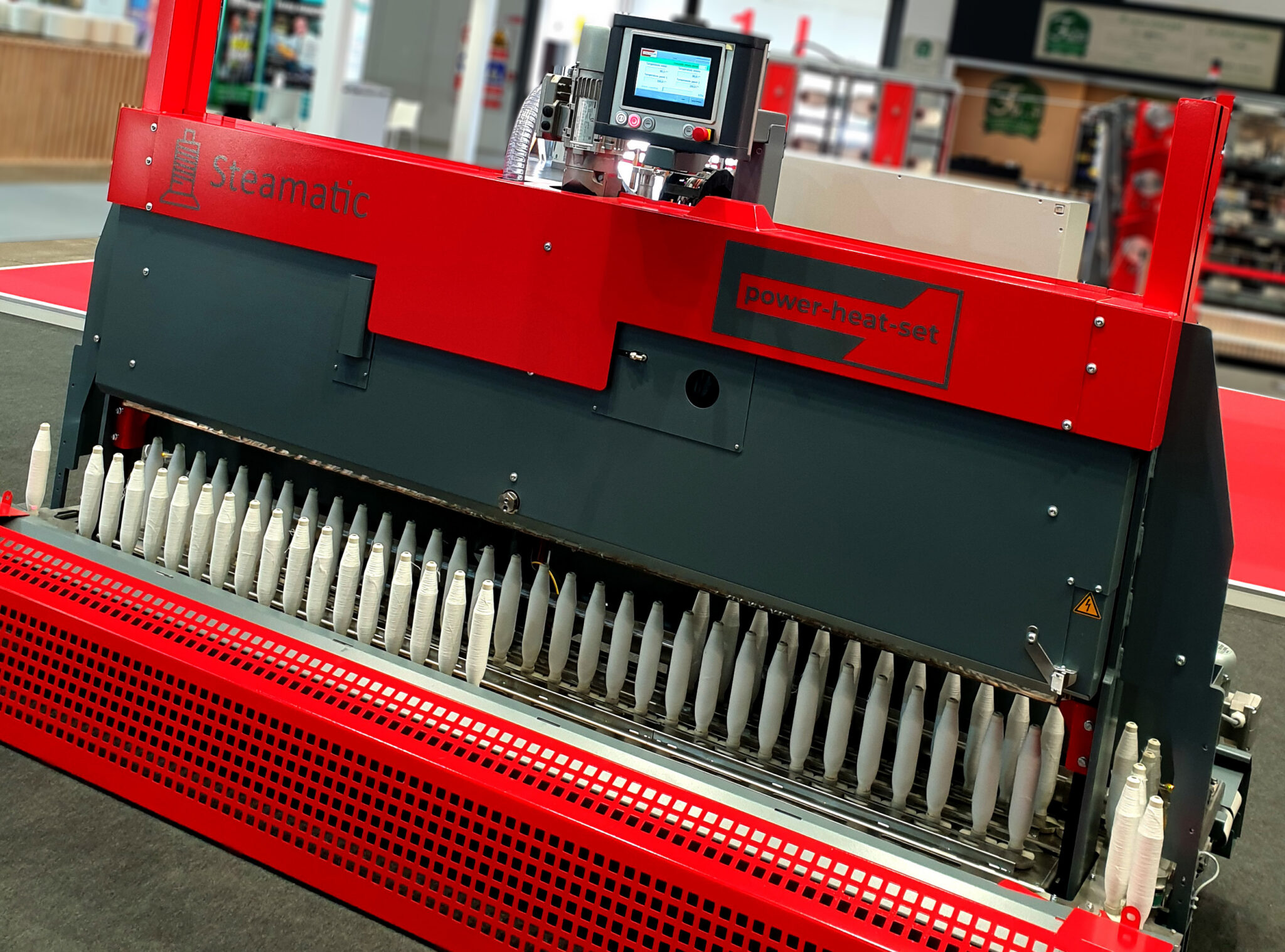

Steamatic
The Inline Steaming Unit
Perfect Link between Ringspinning and Winding
The unique PHS-steaming technology of the Steamatic produces high quality yarn for the textile industry.
The Steamatic automatically takes over the cops on the panels directly from the exit of the ringspinning machine and transports them under the steam dome. After steaming, the cops are conveyed smoothly to the winding machine.
This is done simultaneously, with one panel being loaded, one being processed and one being emptied at the same time.
The Steamatic operates with a synchronized process. Depending on the machine size (E30) and peg tray diameter, between 11 and 32 cops are first steamed under a steam dome and then dried. Both operations are done in a precisely controlled vacuum and with saturated steam temperatures between 70 – 95 °Celsius.
THE STEAMATIC YARN PROCESSING
TECHNICAL DATA
| Compressed Air | Supply | 6 bar |
| Consumption | 1,8m3 / hr. (w/wo cops pre-heating unit) | |
| Supply Connection | Hose 1/2″ | |
| Water | Consumption | 4 l /hr. (w/wo cops pre-heating unit) |
| Waste Water | ca. 4 l / hr. | |
| Supply Connection | Water: Hose 1/2″ | |
| Waste Water: Hose 1/2″ at 0 pressure | ||
| Power | Supply | 400 V – 480 V / 50 Hz – 60 Hz |
| Consumption | 9kWh / hr. without cops pre-heating unit | |
| 11 kWh / hr. with cops pre-heating unit | ||
| Installed | ca. 23 kW without cops pre-heating unit | |
| ca. 28 kW with cops pre-heating unit | ||
| Electricity | 3 PH+PE / 3×35 amps | |
| Throughput | 900 cops / hr. |
ADVANTAGES OF OUR STEAMATIC
Easy installation and start-up.
Possibility of inline steaming.
Suitable for all spinning and winding machines.
Compact installation length, thus shorter connection length.
Light weight, thus easier to transport.
Easy to use, thus user friendly operations.
Available with variable track widths from 680 to 850 mm.
Short heat-up phase, fast readiness for operation.
No separate boiler required.
Vacuum steaming with 100% saturated steam (70°C – 95°C).
Optimal, stable steaming results.
Even spread of humidity (level of humidity can be set).
No hot spots, thus no yellowing of the yarn.
No mechanical damage to the yarn.
No repositioning of cops necessary.
No sealing on the trays.
Fast vacuum drying going easy on the yarn.
Lower investment, low maintenance costs.
Low energy and water consumption.
Abolition of expensive steam pipes.
